Tolomatic MX is designed to outlast every other pneumatic rodless cylinder on the market

mxpfamily



                         Order Tolomatic Rodless Cylinders Online

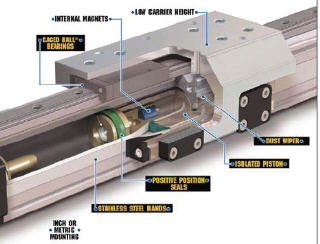

mxp cutaway

Tol-O-Matic ENDURANCE TECHNOLOGY features, the MX band cylinder sets a new standard for durability.

Durable bearings: Profiled rail design uses THK® Caged Ball® technology to reduce friction and extend actuator life. Solid bearing design reduces stress concentration by 59% for optimum performance. Internal bearing design is permanently lubricated for long trouble-free service.

Durable Bands: Strong stainless steel bands will not expand like elastomer (non-metallic) bands, providing reliable sealing over the life of the actuator



N - INTERNAL BEARING

  • Low cost solution for applications with limited load and bending moment requirements
  • Lowest breakaway pressure
  • Best in many vertical applications
  • Permanently lubed internal bearing

S - SOLID BEARING

  • Increased Mx moment capacity
  • Large bearing surface contact area minimizes pressure on bearing surfaces for long service life
  • Large carrier mounting pattern for more load stability and compatibility with existing BC2 applications
  • Engineered bearing material does not require additional lubrication
  • Solid bearings are field replaceable

P - PROFILED RAIL

  • THK® Caged Ball® bearings with reduced friction for reliable long life
  • High load and bending moment capacities
  • Low profile to fit your application
  • High precision bearings feature smooth, low breakaway motion


Files

Mxp_carrier_adjustment_video
Tolomatic MXP Carrier Adjustment Video
[ Download ] (16962kb)


Literature

Mxp_pneumatic_band_cylinder_catalog
MXP Pneumatic Band Cylinder catalog
Literature

This is the Complete Tolomatic MX Series Pneumatic Rodless Cylinder Catalog

[ Download ] (6987kb)

Mx_video
Tolomatic MX Actuator Video
[ Download ] (1493kb)

10_most_common_mistakes_when_sizing_rodless_cylinders
10 Most Common Mistakes when Sizing Rodless Cylinders
Literature

These are the common and expensive design traps to avoid when choosing a rodless cylinder for your application.  A must read for the designer.

[ Download ] (2563kb)
