Tolomatic's Vane Rotary Actuators offer an unbeatable combination of high torque, compact design, low breakaway and low price. Our vane rotary actuators designs have extruded aluminum housings with integral stators; rotor shafts; Buna-N double-lip vane and stator seal and a unique shaft and end cap design.

  • 3 rotary actuator bore sizes
  • Actuator torques up to 325 inch-pounds
  • Double-lip seal design for high efficiency
  • Rotary actuators are permanently pre-lubed
  • Available in 100 and 280 degree rotations
  • Optional infinitely adjustable stops for 1817 and 1825 series

VRX Vane Rotary Actuator Torque vs Pressure Specifications

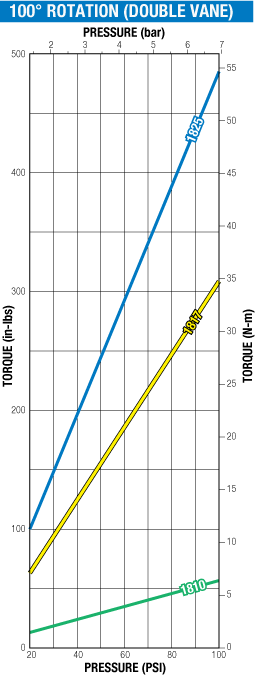

100° ROTATION (Double-vane)

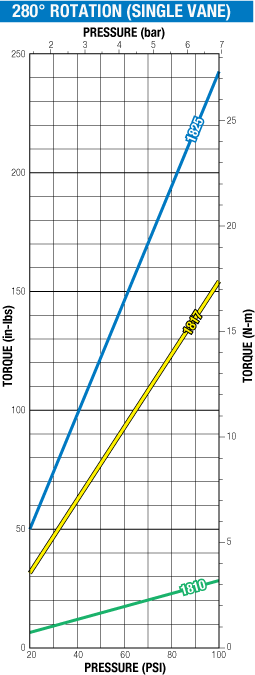

280° ROTATION (Single-vane)
VRX Vane Rotary Actuator Torque Capacity
MAXIMUM TORQUE CAPACITY (AT 100 PSI)
MODEL

1810
1817
1825
BORE

1"
1.75"
2.5"
100° ROTATION
 in-lbs
56
308
484
N-m
6.3
34.8
54.7
280° ROTATION
 in-lbs
28
154
242
N-m
3.2
17.3
27.3
VRX Vane Rotary Actuator Bearing Load Capacities
BEARING LOAD CAPACITY
MODEL

1810
1817
1825
BORE

1"
1.75"
2.5"
RADIAL LOAD
 lbf
19.5
36
59
N
87
160
262
AXIAL LOAD
 lbf
8
17.5
23
N
36
78
102

VRX Vane Rotary Actuator Kinetic Energy Ratings
KINETIC ENERGY RATINGS
MODEL

1810
1817
1825
BORE

1"
1.75"
2.5"
KINETIC ENERGY
ABSORBTION / STOP
 in-lb
0.15
0.35
0.7
N-m
0.02
0.04
0.08

WEIGHT
 lb
0.4
2.0
3.2
kg
0.2
0.9
1.5
MAXIMUM OPERATING PRESSURE
 100 PSI (6.9 BAR)
OPERATING TEMPERATURE
 0 to 125 °F (-18 to 52 °C)
