Liquifit tube fittings for Liquids by Legris

Legris-liquifit_tube_fittings_for_liquids
Manufacturer: Legris

Introducing

From the Trusted Inventor of the Push-to-Connect Fitting With over 40 years of experience, Legris now presents a range of leak-free, push-to-connect fittings in a bio-based compact body.

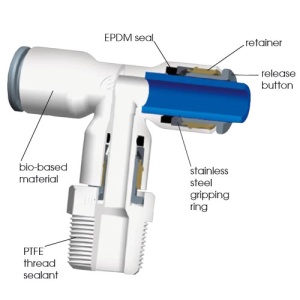

liquifit fitting



LIQUIFIT Offers :

  • The most compact profile on the market
  • EPDM patented sealing technology
  • Full flow
  • Less wear-and-tear on all components
  • No need for locking clip or tube insert
  • Optimum performance suitable for food and water contact
  • 100% bio-based material
    Specifications
    • Applications : water, potable liquids, neutral gases
      For use with chemicals or other potentially aggressive liquids,contact Legris technical department.
    • Working pressure and temperature:
      - 1/4: 230 psi from 35°F to 100°F, 150 psi at 150°F, 60 psi at 200°F
      - 3/8: 190 psi from 35°F to 100°F, 100 psi at 150°F, 60 psi at 200°F
      - 1/2: 160 psi from 35°F to 100°F, 100 psi at 150°F, 60 psi at 200°F
      For use with chemicals or other potentially aggressive liquids, contact Legris technical department.
    • Maximum torquevalues for plastic threads NPT:
      - 1/8 and 1/4: 1.0 ft Ibs / 1.5 Nm
      - 3/8 and 1/2: 2.2 ft Ibs / 3.0 Nm
      For use with chemicals or other potentially aggressive liquids, contact Legris technical department.



What fitting will last longer?...you decide.

                        Legris Fitting on the LEFT                               JG Brand Fitting on the RIGHT



Literature

Link_to_liquifit_website
Link to Liquifit Website
Literature

Link to the Legris Liquifit tube fittings for liquids.

For faster response, enter Air-Oil Systems as your distributor of choice

[ Link ]

Liquifit_tube_fittings_for_liquids_catalog
Liquifit tube fittings for Liquids catalog
Literature
[ Download ] (7286kb)
