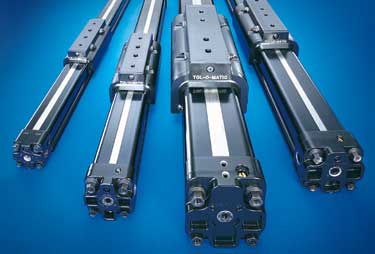

Tolomatic BC2 Series Medium Duty Rodless Air Cylinders

The Tolomatic BC2 Series Band Cylinder's patented design and customer driven features will fill countless application requirements with reliable, long-term performance. Designed for maximum flexibility and versatile mounting in both horizontal and vertical applications, BC2 Series Band Cylinders are available in six bore sizes: 0.5, 1, 1.25, 1.50, 2.0 and 2.50 Inches.  The carrier design of the BC2 Series houses self-lubricating bearing rods, which guide and support loads the full length of the cylinder's stroke.

Each Tolomatic Cylinder is made to order



                                                     Part number and item description is displayed in Shopping Cart



Tolomatic Band Cylinder 1.00 Inch Bore

BC210
Larger picture
  • Description
  • More Details
The Tolomatic BC2 1 inch bore Series Band Cylinder has continued to receive product enhancements making it a solid performer for a wide variety of application requirements

  Tolomatic 1 inch bore BC2 series rodless air cylinder

  • Maximum flexibility and versatile horizontal and vertical mounting
  • Six bore sizes ranging from .5 to 2.5 inches for optimal selection
  • Adjustable cushions for smooth deceleration
  • External bumpers on all BC205 models
  • Adjustable load carrying bracket provides true tracking and superior load support
  • Contact sales@airoil.com  for additional information.

    We are a factory authorized distributor for Tolomatic products.  All of our products are brand new and covered by the factory warantee.

    BC210-English Series

    Bore size: 1 in.
    Base weight: 2.26 lbs.
    Weight per inch of stroke: .14 lbs
    Maximum Stroke Length: 23.6 ft.
    Maximum Pressure: 100 PSI
    Temperature Range: 20o to 140o F
    Moment Loads: 30 to 287 lb-in (depending moment type carrier selection)
    Max. load capacity: 120 lb (depending on carrier selection)

    BC2M10-Metric w/ taper port
    BC2MM10-Metric w/ parallel port

    Bore size: 25 mm.
    Base weight: 1.025 kgs.
    Weight per millimeter of stroke: .0024 kgs.
    Maximum Stroke Length: 7.2 m.
    Maximum Pressure: 6.895 bar
    Temperature Range: -7o to 60o C
    Moment Loads: 3.39 to 32.40 N-m (depending moment type carrier selection)
    Max. load capacity: 54.40 kgs. (depending on carrier selection)



    Tolomatic Band Cylinder 1.25 Inch Bore

    BC212
    Larger picture
    • Description
    • More Details
    The Tolomatic BC2 1.25 inch boreSeries Band Cylinder has continued to receive product enhancements making it a solid performer for a wide variety of application requirements

    Tolomatic 1.25 inch bore rodless air cylinder

  • Maximum flexibility and versatile horizontal and vertical mounting
  • Six bore sizes ranging from .5 to 2.5 inches for optimal selection
  • Adjustable cushions for smooth deceleration
  • External bumpers on all BC205 models
  • Adjustable load carrying bracket provides true tracking and superior load support
  • Contact sales@airoil.com  for additional information.

    We are a factory authorized distributor for Tolomatic products.  All of our products are brand new and covered by the factory warantee.

    BC212-English Series

    Bore size: 1.25 in.
    Base weight: 4.56lbs.
    Weight per inch of stroke: .21 lbs
    Maximum Stroke Length: 23.4 ft.
    Maximum Pressure: 100 PSI
    Temperature Range: 20o to 140o F
    Moment Loads: 75 to 290 lb-in (depending moment type carrier selection)
    Max. load capacity: 120 lb (depending on carrier selection)

    BC2M12-Metric w/ taper port
    BC2MM12-Metric w/ parallel port

    Bore size: 32 mm.
    Base weight: 2.068 kgs.
    Weight per millimeter of stroke: .0036 kgs.
    Maximum Stroke Length: 7.1 m.
    Maximum Pressure: 6.895 bar
    Temperature Range: -7o to 60o C
    Moment Loads: 8.47 to 32.77 N-m (depending moment type carrier selection)
    Max. load capacity: 54.42 kgs. (depending on carrier selection)



    Tolomatic Band Cylinder 1.50 Inch Bore

    BC215
    Larger picture
    • Description
    • More Details
    The Tolomatic BC2 Series 1.5 inch bore Band Cylinder has continued to receive product enhancements making it a solid performer for a wide variety of application requirements

    Tolomatic 1.50 inch bore rodless air cylinder

  • Maximum flexibility and versatile horizontal and vertical mounting
  • Six bore sizes ranging from .5 to 2.5 inches for optimal selection
  • Adjustable cushions for smooth deceleration
  • External bumpers on all BC205 models
  • Adjustable load carrying bracket provides true tracking and superior load support
  • Contact sales@airoil.com  for additional information.

    We are a factory authorized distributor for Tolomatic products.  All of our products are brand new and covered by the factory warantee.

    BC215-English Series

    Bore size: 1.5 in.
    Base weight: 8.18 lbs.
    Weight per inch of stroke: .34 lbs
    Maximum Stroke Length: 23.2 ft.
    Maximum Pressure: 100 PSI
    Temperature Range: 20o to 140o F
    Moment Loads: 200 to 500 lb-in (depending moment type carrier selection)
    Max. load capacity: 180 to 360 lb(depending on carrier selection)

    BC2M15-Metric w/ taper port
    BC2MM15-Metric w/ parallel port

    Bore size: 40 mm.
    Base weight: 3.7 kgs.
    Weight per millimeter of stroke: .0058 kgs.
    Maximum Stroke Length: 7.1 m.
    Maximum Pressure: 6.895 bar
    Temperature Range: -7o to 60o C
    Moment Loads: 22.6 to 56.49 N-m (depending moment type carrier selection)
    Max. load capacity: 81.63 to 163.3 kgs. (depending on carrier selection)



    Tolomatic Band Cylinder 2.00 Inch Bore

    BC220
    Larger picture
    • Description
    • More Details
    The Tolomatic BC2 Series 2 inch bore Band Cylinder has continued to receive product enhancements making it a solid performer for a wide variety of application requirements

    Tolomatic 2 inch bore rodless air cylinder

  • Maximum flexibility and versatile horizontal and vertical mounting
  • Six bore sizes ranging from .5 to 2.5 inches for optimal selection
  • Adjustable cushions for smooth deceleration
  • External bumpers on all BC205 models
  • Adjustable load carrying bracket provides true tracking and superior load support
  • Contact sales@airoil.com  for additional information.

    We are a factory authorized distributor for Tolomatic products.  All of our products are brand new and covered by the factory warantee.

    BC220-English Series

    Bore size: 2 in.
    Base weight: 14.12 lbs.
    Weight per inch of stroke: .54lbs
    Maximum Stroke Length: 13.2 ft.
    Maximum Pressure: 100 PSI
    Temperature Range: 20o to 140o F
    Moment Loads: 300 to 1,100 lb-in (depending moment type carrier selection)
    Max. load capacity: 300 to 600 lb (depending on carrier selection)

    BC2M20-Metric w/ taper port
    BC2MM20-Metric w/ parallel port

    Bore size: 50 mm.
    Base weight: 6.4 kgs.
    Weight per millimeter of stroke: .0093 kgs.
    Maximum Stroke Length: 4.0 m.
    Maximum Pressure: 6.895 bar
    Temperature Range: -7o to 60o C
    Moment Loads: 33.9 to 124.28 N-m (depending moment type carrier selection)
    Max. load capacity: 136.05 to 272.2 kgs. (depending on carrier selection)



    Tolomatic Band Cylinder 2.50 Inch Bore

    BC225
    Larger picture
    • Description
    • More Details
    The BC2 Series 2.5 inch bore Band Cylinder has continued to receive product enhancements making it a solid performer for a wide variety of application requirements

    Tolomatic 2.5 inch bore rodless air cylinder

  • Maximum flexibility and versatile horizontal and vertical mounting
  • Six bore sizes ranging from .5 to 2.5 inches for optimal selection
  • Adjustable cushions for smooth deceleration
  • External bumpers on all BC205 models
  • Adjustable load carrying bracket provides true tracking and superior load support
  • Contact sales@airoil.com  for additional information.

    We are a factory authorized distributor for Tolomatic products.  All of our products are brand new and covered by the factory warantee.

    BC220-English Series

    Bore size: 2 in.
    Base weight: 14.12 lbs.
    Weight per inch of stroke: .54lbs
    Maximum Stroke Length: 13.2 ft.
    Maximum Pressure: 100 PSI
    Temperature Range: 20o to 140o F
    Moment Loads: 300 to 1,100 lb-in (depending moment type carrier selection)
    Max. load capacity: 300 to 600 lb (depending on carrier selection)

    BC2M20-Metric w/ taper port
    BC2MM20-Metric w/ parallel port

    Bore size: 50 mm.
    Base weight: 6.4 kgs.
    Weight per millimeter of stroke: .0093 kgs.
    Maximum Stroke Length: 4.0 m.
    Maximum Pressure: 6.895 bar
    Temperature Range: -7o to 60o C
    Moment Loads: 33.9 to 124.28 N-m (depending moment type carrier selection)
    Max. load capacity: 136.05 to 272.2 kgs. (depending on carrier selection)
