Pneumatic Manual Lockout Valves



!
Lockout w/ Slo Start
Larger picture

Lockout valve with Slo-Start

Lockout valves prevent unauthorized pressurization of an air system during service or maintenance. They employ a unique, one piece center spool design that accommodates a user-supplied padlock in the closed position. When locked in the closed position, the system controlled by the lockout valve cannot be operated until the padlock is removed. Each lockout valve is equipped with an emergency shutoff feature that quickly exhausts all downstream air to atmosphere
Standard Numatics Pneumatic Lockout Valve Specifications:
  • Cv: 3.7 to 20.3
  • Port Sizes: 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2 NPTF & G
  • Maximum Pressure: 150 PSIG
  • Flow Media: filtered air
  • Weight:
      VT30 Series: 2.5 lbs. (1.13 kg)
      VT40 Series: 5.0 lbs. (2.27 kg)
Features:
  • Slow start-up
  • Emergency shutoff
  • Quick exhaust of downstream pressure
  • Meets OSHA specifications
  • Integrated hole for tradesman lock
  • Sturdy construction
  • Durable and long lasting
  • Standardized bright yellow body with red knob is easily identified as a lockout device
  • High exhaust capability
  • Detented spool
  • Low-friction seals
  • Surface mountable
Lockout VL
Larger picture

Lockout valve

Lockout valves prevent unauthorized pressurization of an air system during service or maintenance. They employ a unique, one piece center spool design that accommodates a user-supplied padlock in the closed position. When locked in the closed position, the system controlled by the lockout valve cannot be operated until the padlock is removed. Each lockout valve is equipped with an emergency shutoff feature that quickly exhausts all downstream air to atmosphere
Standard Numatics Lockout valve Specifications:
  • Cv: 3.7 to 20.3
  • Port Sizes: 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2 NPTF & G
  • Maximum Pressure: 150 PSIG
  • Flow Media: filtered air
  • Weight:
      VL30 Series: 2.1 lbs. (.95 kg)
      VL40 Series: 4.4 lbs. (2 kg)
Features:
  • Emergency shutoff
  • Quick exhaust of downstream pressure
  • Meets OSHA specifications
  • Integrated hole for tradesman lock
  • Sturdy construction
  • Durable and long lasting
  • Standardized bright yellow body with red knob is easily identified as a lockout device
  • High exhaust capability
  • Detented spool
  • Low-friction startup
  • Surface mountable

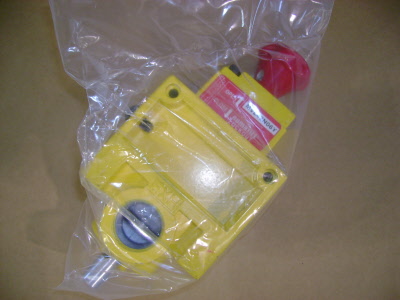

MVL42N06Y

Numatics Quick Exhaust Lockout Valve

Numatics brand lockout/quick exhaust valve

3/4" NPT

Brand new never used overstock.

Rugged air metal design

To be used as a system quick exhaust valve

Numatics Lock out valves.

Sorry...Sold Out
