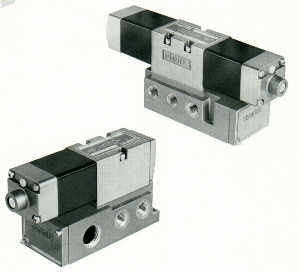

Numatics Mark 15 Valves


Numatics Mark 15 valves have a plug-in base or manifold, a plug-in solenoid and an optional speed control sandwich. The unit to base electrical plug permits instant valve unit replacement without disconnecting piping or wiring.

IN STOCK!  SAME DAY SHIPPING



Numatics Mark 15 Air Valves

Numatics Mark 15 Air Valve Single Solenoid 120 VAC

Numatics
152SA400K000030
  • Description
  • More Details

Numatics Mark 15 Single Solenoid Spring Return 120 VAC

In Stock





Numatics Mark 15 Valve Specifications



Numatics 152SA400K000030 Solenoid Air Control Valve
Type 4-Way, 2-Position
Valve Type Base Mounted
Actuator/Return Solenoid/Spring
CFM 69
Cv 1.5
Coefficient of Volume 1.5
Max. Temp. Range (F) -10 to 115
Max. Operating PSI 150
Current Rating (mA) 580 mA (In Rush), 90 mA (Holding)
Design Base Mount
Meets/Exceeds NEMA 4
Pressure Range 0 to 150 PSI
Vacuum 0 to 28"Hg
Requires Mark 15 Base or Manifold
Length (In.) 6 5/16
Width (In.) 1 11/16
Height (In.) 1 11/16

Contact sales@airoil.com for additional information

We are a factory authorized distributor for ASCO/Numatics.  All of our products are brand new and covered by the ASCO/Numatics warantee.

Numatics Mark 15 Air Valve Single Solenoid 24 VDC

Numatics
152SA400M000061
  • Description
  • More Details

Numatics Mark 15 Single solenoid Spring Return 24 VDC





Numatics Mark 15 Valve Specifications



In Stock



Numatics 152SA400M000061 Solenoid Air Control Valve
Type 4-Way, 2-Position
Valve Type Base Mounted
Actuator/Return Solenoid/Spring
CFM 69
Cv 1.5
Coefficient of Volume 1.5
Max. Temp. Range (F) -10 to 115
Max. Operating PSI 150
Current Rating (mA) 250 mA (In Rush), 250 mA (Holding)
Design Base Mount
Meets/Exceeds NEMA 4
Pressure Range 0 to 150 PSI
Vacuum 0 to 28"Hg
Requires Mark 15 Base or Manifold
Length (In.) 6 5/16
Width (In.) 1 11/16
Height (In.) 1 11/16

Contact sales@airoil.com for additional information

We are a factory authorized distributor for ASCO/Numatics.  All of our products are brand new and covered by the ASCO/Numatics warantee.

Numatics Mark 15 Air Valve Double Sol

Numatics
152SS400K000030
  • Description
  • More Details

Numatics Mark 15 Double Solenoid - two position 120 VAC



Numatics Mark 15 Valve Specifications



In Stock



Numatics 152SS400K000030 Solenoid Air Control Valve
Type 4-Way, 2-Position
Valve Type Base Mounted
Actuator/Return Solenoid/Solenoid
CFM 69
Cv 1.5
Coefficient of Volume 1.5
Max. Temp. Range (F) -10 to 115
Max. Operating PSI 150
Current Rating (mA) 580 mA (In Rush), 90 mA (Holding)
Design Base Mount
Meets/Exceeds NEMA 4
Pressure Range 0 to 150 PSI
Vacuum 0 to 28"Hg
Requires Mark 15 Base or Manifold
Length (In.) 8 7/8
Width (In.) 1 3/8
Height (In.) 1 1/2

Contact sales@airoil.com for additional information

We are a factory authorized distributor for ASCO/Numatics.  All of our products are brand new and covered by the ASCO/Numatics warantee.

Numatics Mark 15 Valve Double 24 VDC

Numatics
152SS400M000061
  • Description
  • More Details

Numatics Mark 15 Double solenoid - two position 24 VDC



Numatics Mark 15 Valve Specifications



In Stock



Numatics 152SS400M000061 Solenoid Air Control Valve
Type 4-Way, 2-Position
Valve Type Base Mounted
Actuator/Return Solenoid/Solenoid
CFM 69
Cv 1.5
Coefficient of Volume 1.5
Max. Temp. Range (F) -10 to 115
Max. Operating PSI 150
Current Rating (mA) 250 mA (In Rush), 250 mA (Holding)
Design Base Mount
Meets/Exceeds NEMA 4
Pressure Range 0 to 150 PSI
Vacuum 0 to 28"Hg
Requires Mark 15 Base or Manifold
Length (In.) 9 7/8
Width (In.) 1 3/8
Height (In.) 1 1/2

Contact sales@airoil.com for additional information

We are a factory authorized distributor for ASCO/Numatics.  All of our products are brand new and covered by the ASCO/Numatics warantee.

Numatics Mark 15 Air Valve 3 Position Closed

Numatics
152SS600K000030
  • Description
  • More Details

Numatics Mark 15 Double solenoid - 3 position Closed Center 120 VAC



Numatics Mark 15 Valve Specifications



In Stock



Numatics 152SS600K000030 Solenoid Air Control Valve
Type 4-Way, 3-Position, Closed Center
Valve Type Base Mounted
Actuator/Return Solenoid/Solenoid
CFM 69
Cv 1.5
Coefficient of Volume 1.5
Max. Temp. Range (F) -10 to 115
Max. Operating PSI 150
Current Rating (mA) 580 mA (In Rush), 90 mA (Holding)
Design Base Mount
Meets/Exceeds NEMA 4
Pressure Range 0 to 150 PSI
Vacuum 0 to 28"Hg
Requires Mark 15 Base or Manifold
Length (In.) 8 7/8
Width (In.) 1 3/8
Height (In.) 1 1/2

Contact sales@airoil.com for additional information

We are a factory authorized distributor for ASCO/Numatics.  All of our products are brand new and covered by the ASCO/Numatics warantee.

Numatics Mark 15 Air Valve 3 Position Open

Numatics
152SS500K000030
  • Description
  • More Details

Numatics Mark 8 Double solenoid - 3 position Open Center 120 VAC



Numatics Mark 15 Valve Specifications



In Stock



Numatics 152SS500K000030 Solenoid Air Control Valve
Type 4-Way, 3-Position, Open Center
Valve Type Base Mounted
Actuator/Return Solenoid/Solenoid
CFM 46
Cv 1.0
Coefficient of Volume 1.0
Max. Temp. Range (F) -10 to 115
Max. Operating PSI 150
Current Rating (mA) 380 mA (In Rush), 90 mA (Holding)
Design Base Mount
Meets/Exceeds NEMA 4
Pressure Range 0 to 150 PSI
Vacuum 0 to 28"Hg
Requires Mark 8 Base or Manifold
Length (In.) 6 7/8
Width (In.) 1 3/8
Height (In.) 1 1/2

Contact sales@airoil.com for additional information

We are a factory authorized distributor for ASCO/Numatics.  All of our products are brand new and covered by the ASCO/Numatics warantee.
